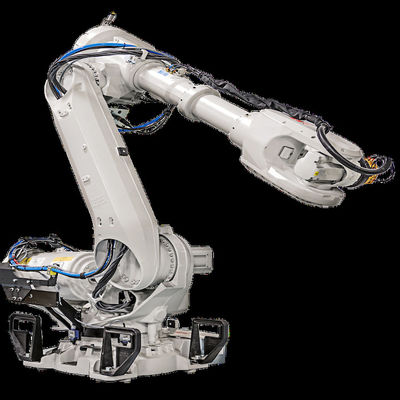

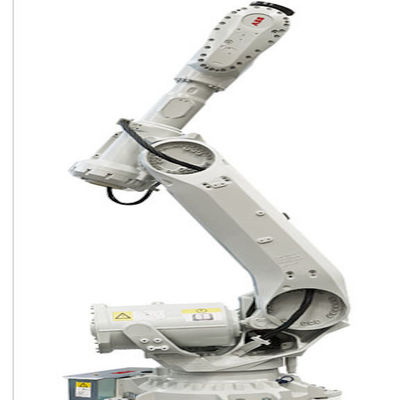

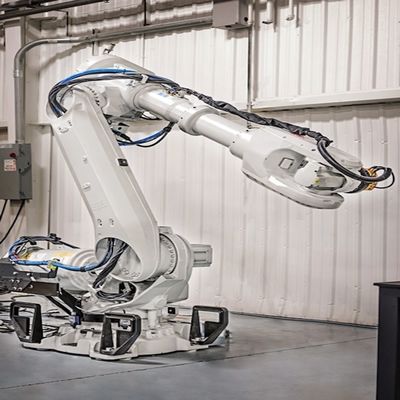

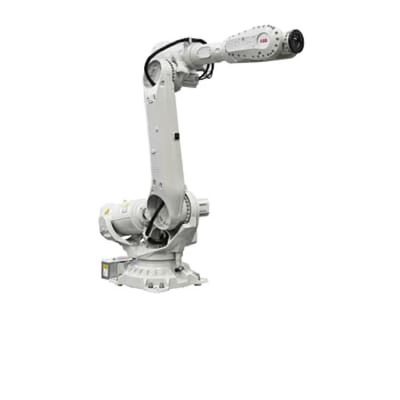

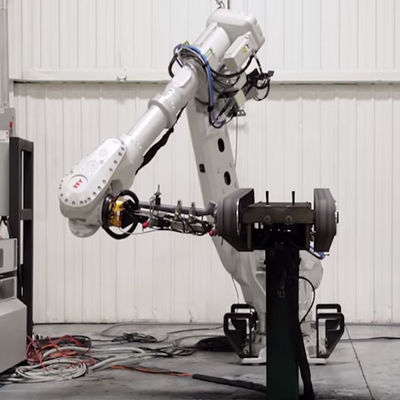

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding robot and Payload 200Kg Reach 2600mm

Informasi Dasar

Tempat asal:	Cina
Nama merek:	ABB
Nomor model:	IRB6700-200 / 2.6

Kuantitas min Order:	1 set
Harga:	US $33510
Kemasan rincian:	SATU ABB stasiun total industri besar robot 6 sumbu ABB IRB6700 6 Axis Perakitan Lengan Robot Indust
Waktu pengiriman:	30-60 hari kerja
Syarat-syarat pembayaran:	L / C, T / T, Western Union
Menyediakan kemampuan:	100 set / bulan

Hubungi sekarang

Nama:

ABB IRB6700 6 Axis Industrial Robot Arm Perakitan Polishing Picking Welding robot dan Payload 200Kg

Aplikasi:

Perakitan / Poles / Memilih / Pengelasan

Muatan:

200 kg

Mencapai:

2600mm

Jumlah Sumbu:

Bahan:

Paduan aluminium

Perlindungan:

Std: IP67.

Pemasangan:

Lantai, terbalik

Pengulangan posisi:

0,05 mm

pengontrol:

IRC5 Kabinet Tunggal / IRC5 PMC Panel Mounted Controller

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding robot and Payload 200Kg Reach 2600mm

Specification

Robot version	Reach(m)	Handling capacity(kg)	Center of gravity(kg)	Wrist torque(Nm)
Without LeanID
IRB 6700-200/2.60	2.60	200	300	981
IRB 6700-155/2.85	2.85	155	300	927
IRB 6700-150/3.20	3.20	150	300	1135
IRB 6700-300/2.70	2.70	300	300	1825
Without LeanID
IRB 6700-200/2.60	2.60	175	300	981
IRB 6700-155/2.85	2.85	140	300	927
IRB 6700-150/3.20	3.20	145	300	1135
IRB 6700-300/2.70	2.70	270	300	1825
Number of axes 6
Protection	Std:IP67.Option:Foundry Plus 2
Mounting	Floor,inverted
Controller	IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller

Performance(according to ISO 9283)

Technical information

Electrical Connections
Supply voltage		200-600 V,50/60 Hz
Energy consumption		2.8KW
Physical
Robot base	1004x720 mm
Robot weight(without Dress Pack)
IRB 6700-200/2.60	1250kg
IRB 6700-155/2.85	1260kg
IRB 6700-150/3.20	1280kg
IRB 6700-300/2.70	1525kg
