Aplikasi:	penanganan	Fitur:	Robot kolaboratif am
Kondisi:	Baru	Jaminan:	1 TAHUN, 1 tahun
Kekuatan:	350	Voltase:	220
Industri yang Berlaku:	Hotel, Toko Garmen, Toko Bahan Bangunan, Pabrik Manufaktur, Bengkel Mesin, Pabrik Makanan & Minuman,	Berat (kg):	78
Lokasi Showroom:	Inggris Raya, Amerika Serikat, Italia, Prancis, Jerman, India	Inspeksi keluar video:	Asalkan
Laporan Uji Mesin:	Asalkan	Jenis Pemasaran:	Produk Biasa
Garansi komponen inti:	1 tahun	Komponen inti:	Gearbox, motor
Nama Produk:	6 sumbu lengan cobot untuk cobot cnc elfin robot lengan robot kolaboratif	Jumlah sumbu:	6 sumbu
Muatan Maksimum:	12 KG	Jangkauan maksimum:	1000 mm
Pose pengulangan (ISO 9283):	± 0,05 mm	Bahan:	Paduan aluminium
Peringkat perlindungan:	IP54/IP66	Posisi pemasangan:	Lantai/ Langit-Langit/Dinding
Seumur hidup:	30000H	Pelabuhan:	Shanghai

6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm

Main Specifications:

Maximum reach:1000 mm
Maximum payload:12 kg
Pose repeatability (ISO 9283):± 0.05 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description

Product Name	6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
Application	6 axis cobot arm ; cobot cnc; elfin robot collaborative robotic arm
Model	Elfin 10
Robot Arm
Maximum reach	1000 mm
Maximum payload	12 kg
Pose repeatability (ISO 9283)	± 0.05 mm
Number of axes	6
Mounting position	Floor/ Ceiling/Wall
Lifetime	30000h
Weight	17 kg
Protection rating	IP54
Standard	CE, TUV,KSc
Power consumption	200W
Material	Aluminum alloy
Ambient temperature	0-45°C
Environment humidity	20-85%(No condensation)
Power supply	DC 48V
Protocol	CAN bus
A1	±135°
A2	±135°
A3	±135°
A4	±135°
A5	±135°
A6	±135°
Controller
Size	536mm445mm491mm
Weight	20Kg
Cable length	5m
Colour	Black
Protocol	Ethernet,Modbus-RTU/TCP
Power	100-240V/AC,50-60HZ
Protection rating	IP54
I/O port	16 in/16 out
Teach pendant
Size	355mm235mm54mm
Weight	1.8Kg
Screen	12 inch Resistive LCD touch screen
Cable length	4m
Protection rating	IP54
Colour	Orange+black

Detailed Images

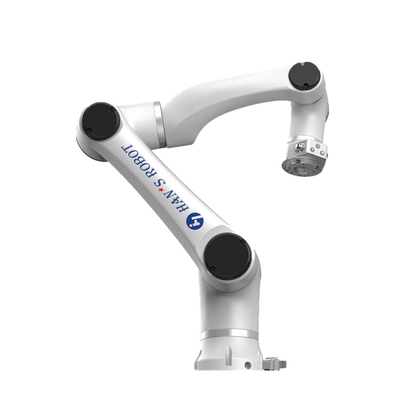

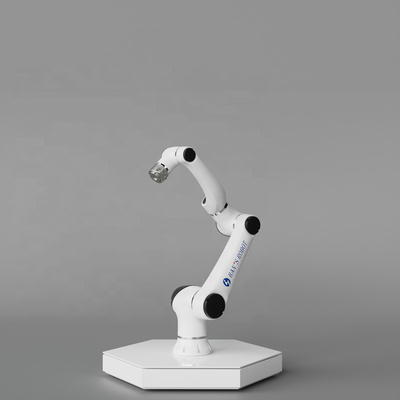

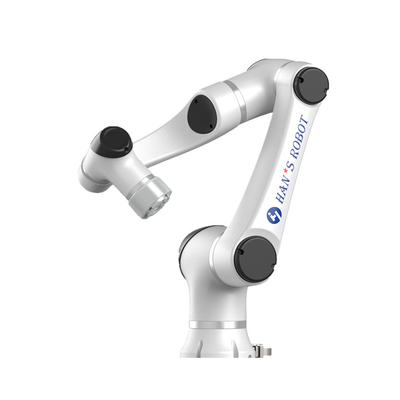

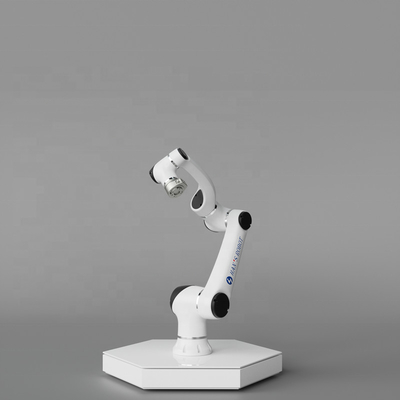

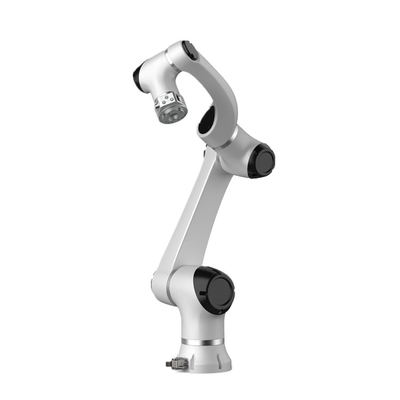

6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm 0

6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm 5

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.

Label:

Tempat asal:	Guangdong, Cina
Nama merek:	Hans

Harga:	$17,000.00/Sets >=1 Sets
Kemasan rincian:	<i>One 6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
Menyediakan kemampuan:	5 Potongan/Potongan per Bulan
