Valmet VD Series Pneumatic Diaphragm Actuator with NDX Controller

1
MOQ
US $2000.00 - 2550.00/ Set
harga
Valmet VD Series Pneumatic Diaphragm Actuator with NDX Controller
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Jenis: Aktuator diafragma pneumatik
Tekanan operasi: 3.0 - 4.2 bar /44 - 60 psi
Outout dorongan: 1890 - 22800 N / 424 - 5125 lb.f
Seri: VD - Akting tunggal linear
Kisaran suhu: -55 ...+85 ° C / -67 ...+185 ° f
Opsi Rentang Musim Semi: General Spring 0,8 bar - 2,6 bar (11 psi - 37 psi)
Menyoroti:

Valmet VD Series pneumatic actuator

,

pneumatic diaphragm actuator with NDX controller

,

industrial pneumatic control valves
Informasi dasar
Nama merek: Neles
Nomor model: Seri VD
Dokumen: xiangjing valve&instrument ...t .pdf
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton + Kotak Kayu + Perlindungan
Waktu pengiriman: 60-90 hari
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 500 set per tahun
Deskripsi Produk

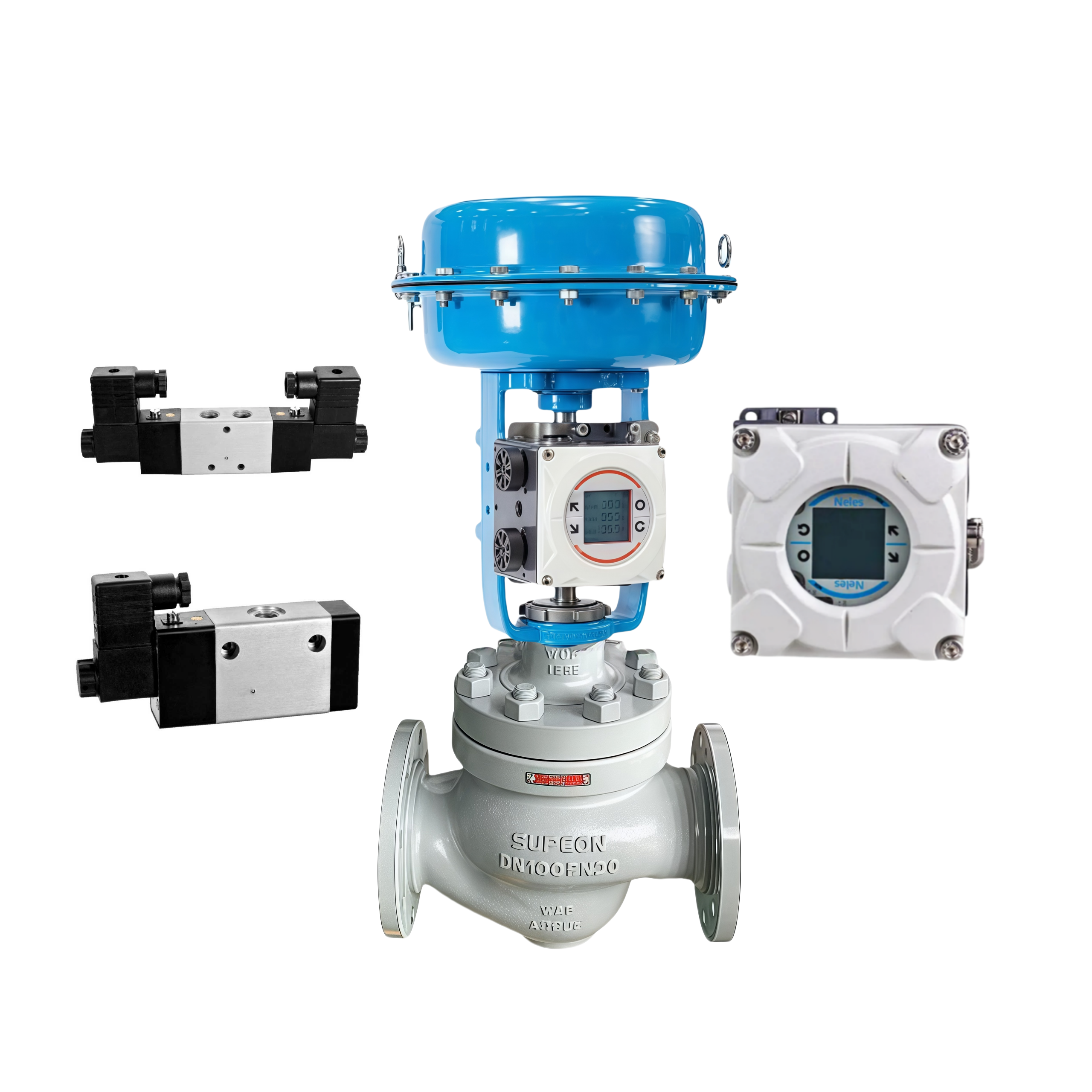

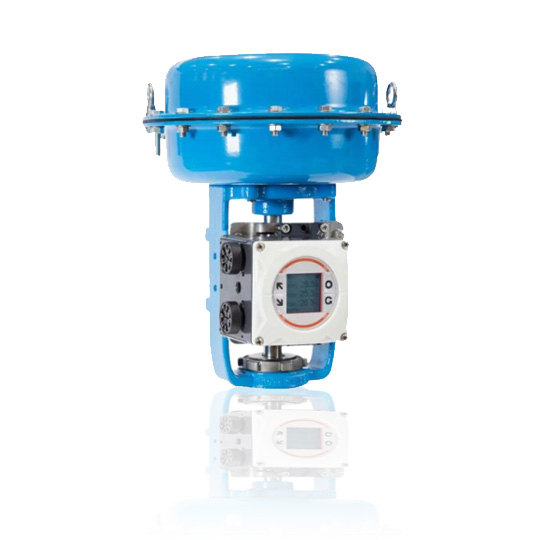

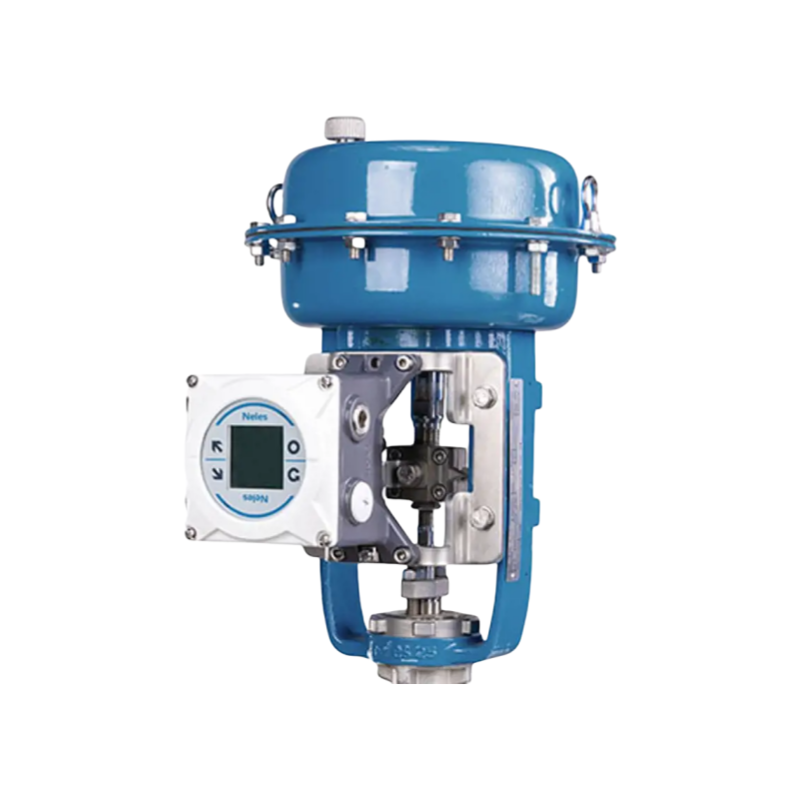

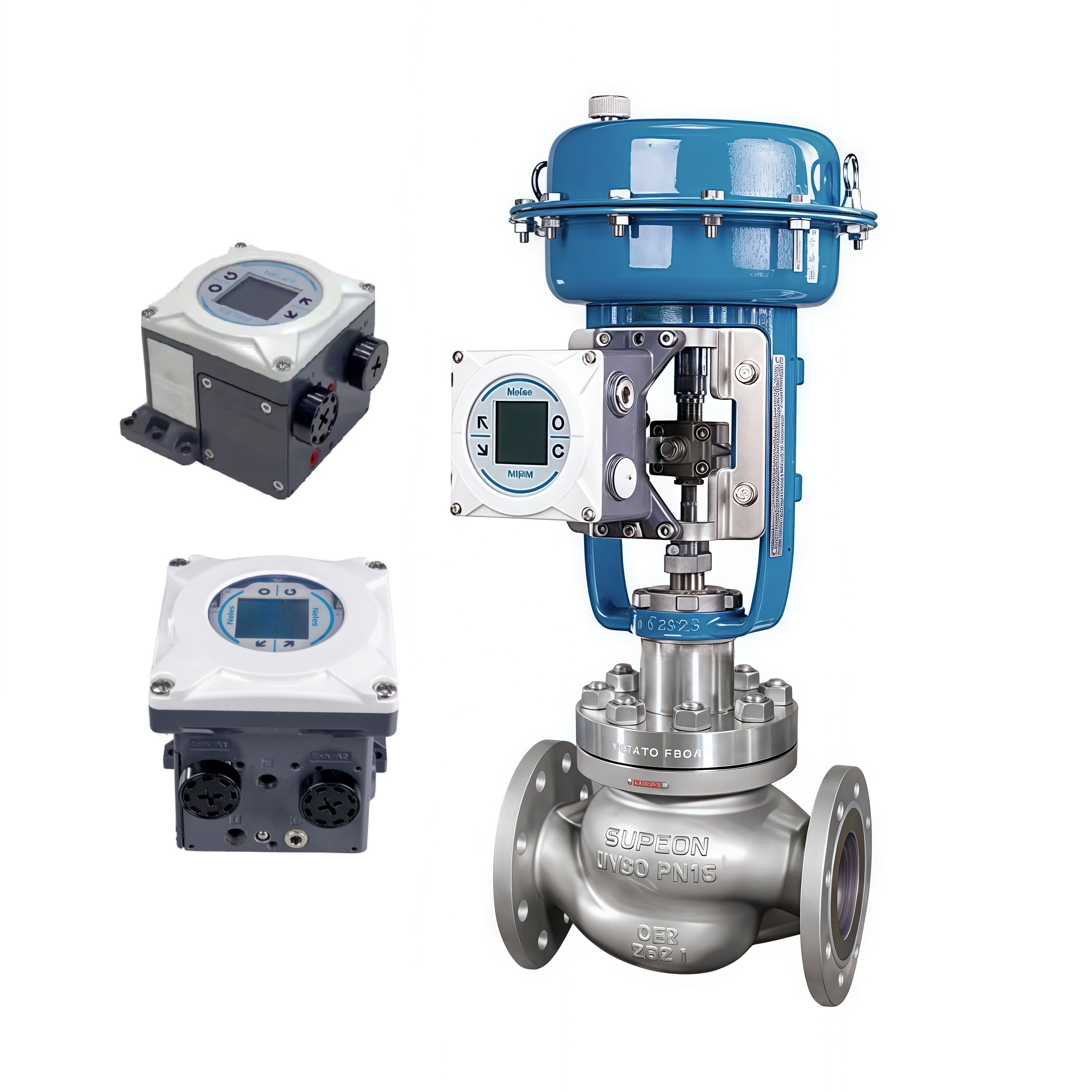

Valmet VD Series Pneumatic Linear Diaphragm Actuator with NDX Digital Valve Controller
Product Overview

The Valmet Neles VD Series Pneumatic Actuator, integrated with the NDX Digital Valve Controller and solenoid valve, provides a complete solution for automated valve control. Engineered for precision and durability, this system supports both linear and rotary valves, offering SIL3-certified safety and seamless integration with DCS/PLC systems. Its modular design allows for easy customization across various industrial applications.

Product Attributes
Attribute Value
Type Pneumatic diaphragm actuator
Operating pressure 3.0 - 4.2 bar / 44 - 60 psi
Output thrust 1890 - 22800 N / 424 - 5125 lb.f
Series VD - linear single acting
Temperature range -55 ... +85 °C / -67 ... +185 °F
Spring range options General spring 0.8 bar - 2.6 bar (11 psi - 37 psi)
Key Features
  • Dual Compatibility: Works with all major valve brands (linear/rotary)
  • Advanced Diagnostics: Monitors valve friction, air pressure, and travel deviation
  • Low Air Consumption: 80-90% less gas usage than traditional positioners
  • Quick Installation: Plug-and-play setup with auto-configuration
  • Rugged Build: Aluminum housing with IP66/IP67 ratings
Technical Specifications
Parameter Specification
Actuator Type Pneumatic linear diaphragm
Thrust Range 1,890-22,800 N
Positioner Input 4-20mA, HART, PROFIBUS PA
Solenoid Voltage 24V DC/110V AC
Response Time <100 ms
Certification ATEX, SIL3, IEC 61508
Weight (Actuator) 25-120 kg
Operating Humidity 0-95% RH non-condensing
Applications
  • Pharmaceutical: Sterile valve control in CIP/SIP systems
  • Food & Beverage: Precision dosing in dairy processing
  • Metallurgy: Cooling water flow control in steel mills
  • Marine: Ballast water treatment on ships
