SIPOS SEVEN 7 Variable Speed Electric Actuator for Valve Automation

1
MOQ
US $2998.00 - 3498.00/ Unit
harga
SIPOS SEVEN 7 Variable Speed Electric Actuator for Valve Automation
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Torque Range: 10 Nm - 4000 Nm
Speed Range: Variable speed control from 0.5 rpm to 60 rpm (depending on model)
Control Type: ON/OFF, Modulating (continuous), Positioning
Ambient Temperature: -30°C to +70°C (standard); extended range available on request
Thrust: Up to 150 kN (with thrust unit)
Power Supply: 3-phase: 380-500 V AC, 50/60 Hz
Protection Class: IP67 / IP68 optional
Menyoroti:

SIPOS SEVEN 7 electric actuator

,

variable speed valve actuator

,

electric control valve automation
Informasi dasar
Nama merek: SIPOS
Model Number: Seven
Dokumen: xiangjing valve&instrument ...t .pdf
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kotak kayu + kotak kardus + perlindungan
Delivery Time: 90 work days
Payment Terms: T/T
Supply Ability: 500 units per year
Deskripsi Produk
Original SIPOS SEVEN 7 Variable Speed Electric Actuator and China Electric Butterfly Valve for Valve Automation
Product Attributes
Attribute Value
Torque Range 10 Nm - 4000 Nm
Speed Range Variable speed control from 0.5 rpm to 60 rpm (depending on model)
Control Type ON/OFF, Modulating (continuous), Positioning
Ambient Temperature -30°C to +70°C (standard); extended range available on request
Thrust Up to 150 kN (with thrust unit)
Power Supply 3-phase: 380-500 V AC, 50/60 Hz
Protection Class IP67 / IP68 optional

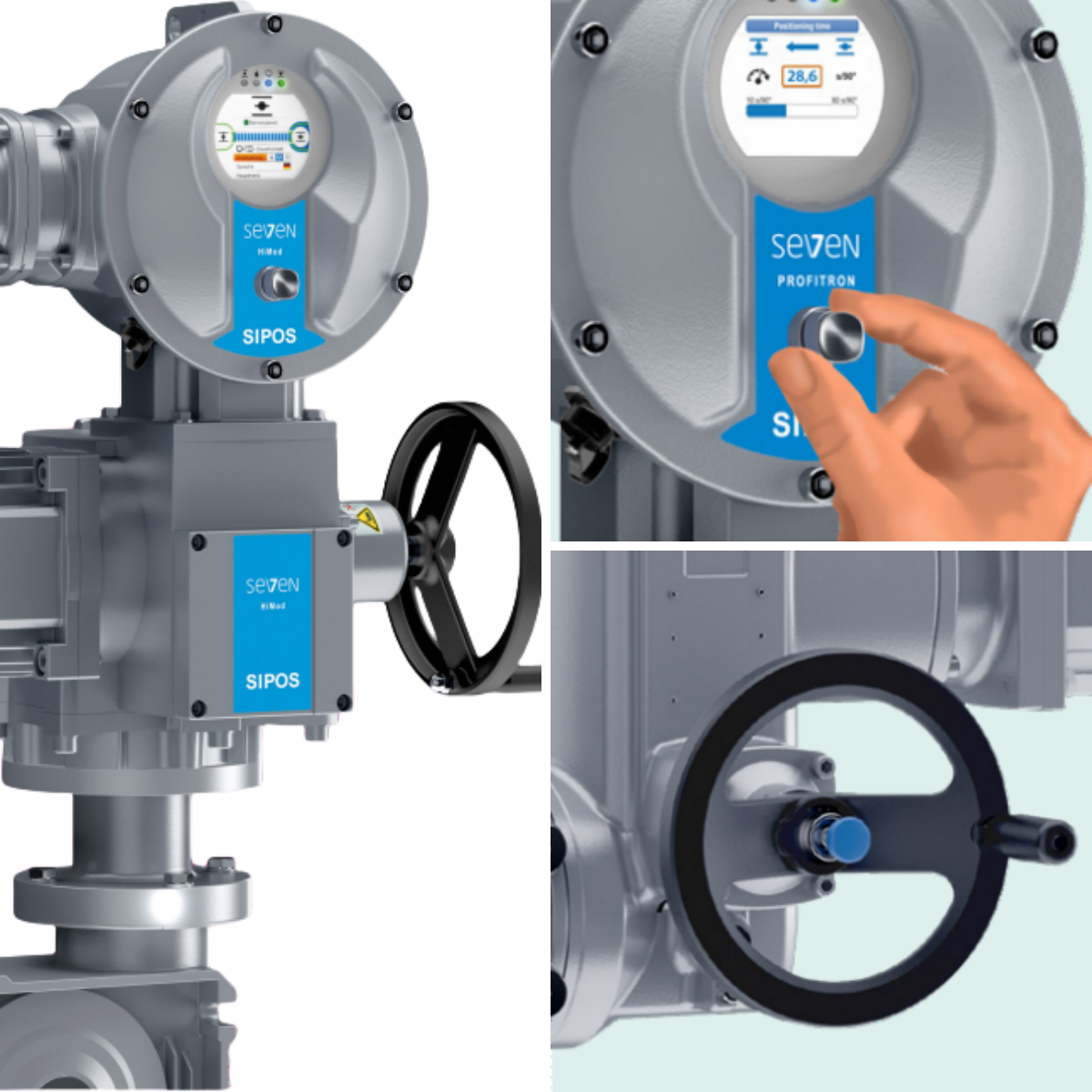

SIPOS SEVEN 7 Variable Speed Electric Actuator
Product Overview

The SIPOS SEVEN 7 Variable Speed Electric Actuator is a cutting-edge solution designed for precise control of electric butterfly valves in industrial automation. Engineered with adjustable speed settings, it optimizes valve performance while reducing energy consumption. Paired with China-made electric butterfly valves, it ensures seamless integration for water treatment, chemical processing, and HVAC systems.

Technical Parameters
Parameter Specification
Model SIPOS SEVEN 7 Series
Voltage 24V AC/DC, 110-240V AC
Speed Range 0.1-120 RPM (adjustable)
Torque Output 20-1500 Nm
Control Signal 4-20 mA, 0-10V, Modbus TCP
Protection Class IP67 / NEMA 4X
Operating Temp -30°C to +85°C
Material Aluminum Alloy, Stainless Steel 304
Certification CE, ATEX, SIL 2
Key Features
  • Variable Speed Control: Optimizes valve response for different flow demands.
  • Energy-Efficient Motor: Reduces power usage by up to 30% compared to fixed-speed models.
  • Smart Diagnostics: Real-time torque and position monitoring via Modbus.
  • Durable Construction: Withstands corrosive environments and high humidity.
  • Easy Integration: Compatible with major DCS/PLC systems.
Applications
  • Water Treatment Plants: Precise flow control in filtration and disinfection systems.
  • Chemical Industry: Safe handling of aggressive media in reactors.
  • Power Generation: Cooling water system automation for turbines.
  • HVAC Systems: Energy-efficient dampers and zone control.
