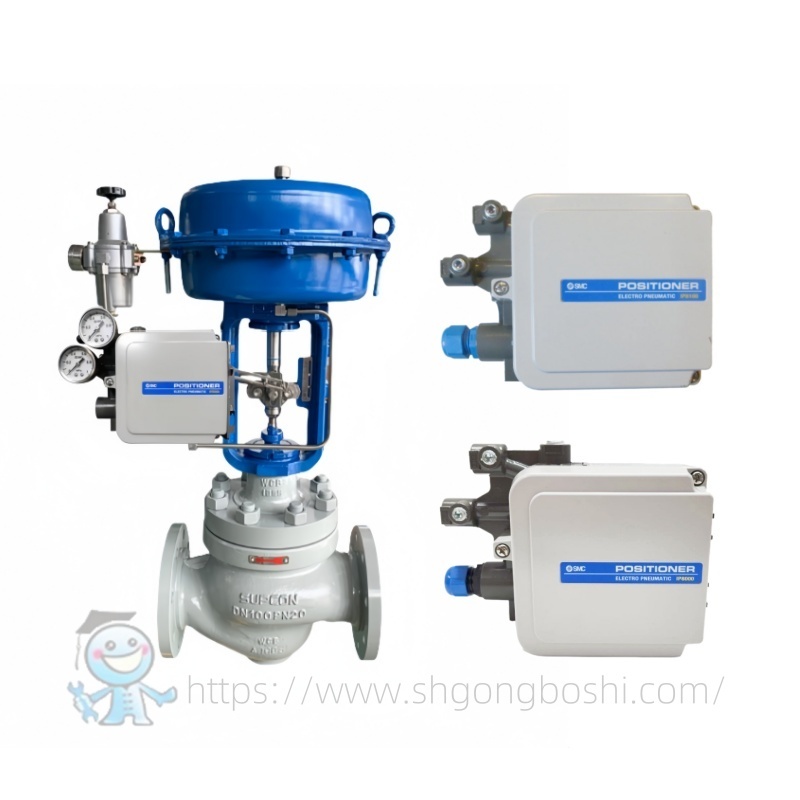

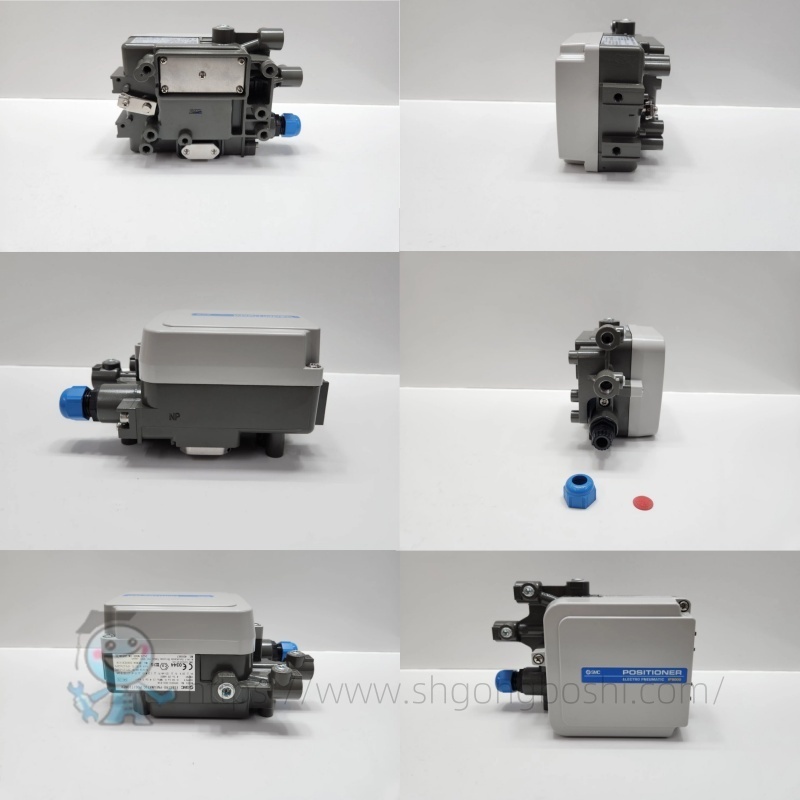

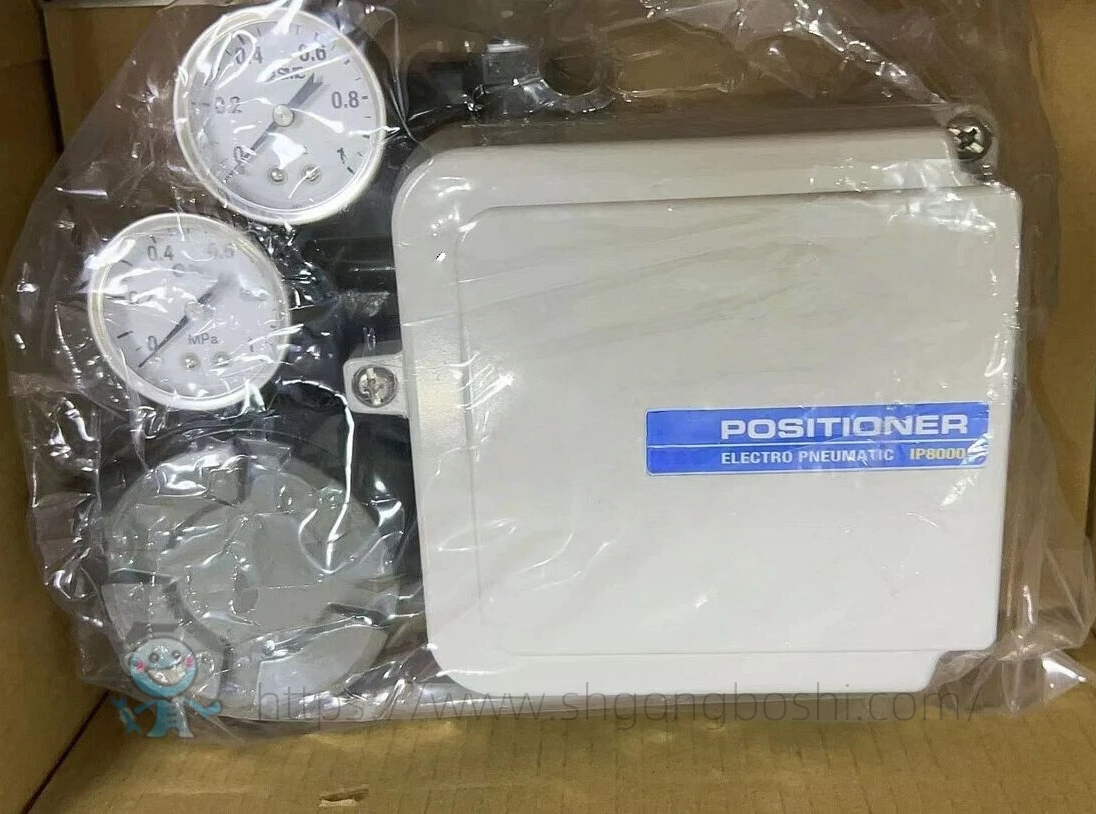

SMC IP8000 IP8100 Electro Pneumatic Valve Positioner 4-20mA DC

1
MOQ
US $880.00 - 1080.00/ Unit
harga
SMC IP8000 IP8100 Electro Pneumatic Valve Positioner 4-20mA DC
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Arus input: 4-20 ma dc (standar)
Pengulangan: Dalam ± 0,5% FS
Aliran output: ≥ 80 L/mnt (ANR) pada pasokan 0,14 MPa; ≥ 200 L/menit pada 0,4 MPa
Kisaran Suhu Ambient & Fluida:: -20 ° C hingga 80 ° C (area tidak berbahaya)
Berat: kira -kira. 2,4 kg
Perlindungan masuk: IP65
Konstruksi anti ledakan: Ya
Menyoroti:

SMC electro pneumatic valve positioner

,

IP8000 valve positioner 4-20mA

,

pneumatic control valve with positioner
Informasi dasar
Nama merek: SMC
Nomor model: IP8000 IP8100 IP8001 IP8101
Dokumen: Company profile Xiangjing (...ts.pdf
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton + Kotak Kayu + Perlindungan
Waktu pengiriman: 90 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 500 unit per tahun
Deskripsi Produk
SMC IP8000 IP8100 Electro Pneumatic Valve Positioner China Single Seat Control Valve
Product Specifications
Attribute Value
Input Current 4-20 mA DC (Standard)
Repeatability Within ±0.5% F.S.
Output Flow ≥ 80 L/min (ANR) at 0.14 MPa supply; ≥ 200 L/min at 0.4 MPa
Ambient & Fluid Temperature Range -20 °C to 80 °C (non-hazardous areas)
Weight approx. 2.4 kg
Ingress Protection IP65
Explosion-Proof Construction Yes
Product Overview

The SMC IP8000/IP8100 Electro-Pneumatic Valve Positioner is designed for high-precision control of single seat control valves in industrial automation systems. Combining robust construction with advanced pneumatic technology, these positioners ensure accurate flow regulation, low hysteresis, and excellent stability. The IP8100 model features enhanced visibility and IP65-rated enclosure for harsh environments.

Technical Parameters
Parameter IP8000 (Single Action) IP8000 (Double Action) IP8100 (Single Action) IP8100 (Double Action)
Input Current 4-20mA DC 4-20mA DC 4-20mA DC 4-20mA DC
Input Resistance 235±15Ω 235±15Ω 235±15Ω 235±15Ω
Supply Air Pressure 0.14-0.7 MPa 0.14-0.7 MPa 0.14-0.7 MPa 0.14-0.7 MPa
Standard Stroke 10-85mm (10-30°) 10-85mm (10-30°) 60-100° 60-100°
Sensitivity ≤0.1%F.S. ≤0.5%F.S. ≤0.1%F.S. ≤0.5%F.S.
Linearity ±0.1%F.S. ±2.0%F.S. ±0.1%F.S. ±2.0%F.S.
Hysteresis ±0.75%F.S. ±1%F.S. ±0.75%F.S. ±1%F.S.
Key Features
  • High-precision force balance amplifier for stable operation
  • Easy-to-clean air blockage structure
  • Explosion-proof design (Ex ibⅡCT5/T6 Gb)
  • Wide temperature range (-35℃ to +60℃)
Applications

Petrochemical flow control
Power plant boiler systems
Metallurgical industry pressure regulation
