SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC

1
MOQ
US $880.00 - 1080.00/ Unit
harga
SMC IP8000 IP8001 Lever Type Smart Valve Positioner 4-20mA DC
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Arus input: 4-20 ma dc (standar)
Pengulangan: Dalam ± 0,5% FS
Aliran output: ≥ 80 L/mnt (ANR) pada pasokan 0,14 MPa; ≥ 200 L/menit pada 0,4 MPa
Kisaran Suhu Ambient & Fluida:: -20 ° C hingga 80 ° C (area tidak berbahaya)
Berat: kira -kira. 2,4 kg
Perlindungan masuk: IP65
Konstruksi anti ledakan: Ya
Menyoroti:

SMC lever type valve positioner 4-20mA

,

smart valve positioner pneumatic control

,

IP8000 positioner with DC input
Informasi dasar
Nama merek: SMC
Nomor model: IP8000 IP8100 IP8001 IP8101
Dokumen: Company profile Xiangjing (...ts.pdf
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton + Kotak Kayu + Perlindungan
Waktu pengiriman: 90 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 500 unit per tahun
Deskripsi Produk

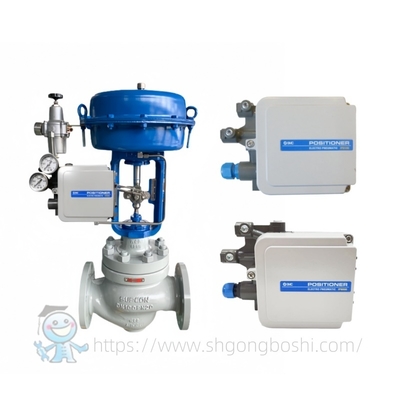

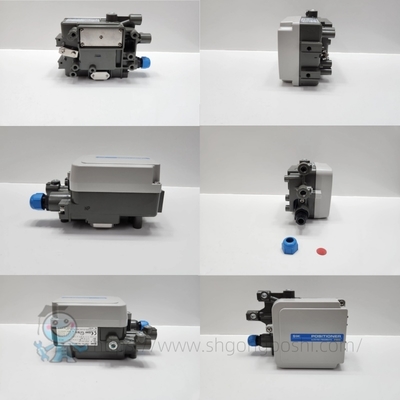

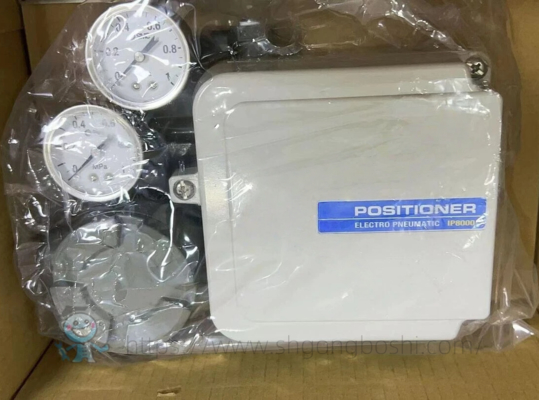

SMC IP8000/IP8001 Lever Type Smart Valve Positioner
Product Overview

The SMC IP8000/IP8001 Lever Type Smart Valve Positioner integrates advanced electro-pneumatic control with energy-efficient design. Ideal for globe/gate valves, the IP8001 model features HART communication and LCD display for real-time monitoring. It reduces air consumption by 60% compared to traditional models, making it a cost-effective solution for industrial automation.

Technical Specifications
Attribute Value
Input Current 4-20 mA DC (Standard)
Repeatability Within ±0.5% F.S.
Output Flow ≥ 80 L/min (ANR) at 0.14 MPa supply; ≥ 200 L/min at 0.4 MPa
Ambient & Fluid Temperature Range -20 °C to 80 °C (non-hazardous areas)
Weight approx. 2.4 kg
Ingress Protection IP65
Explosion-Proof Construction Yes
Model Comparison
Parameter IP8000 IP8001
Input Current 4-20mA DC 4-20mA DC
Supply Air Pressure 0.14-0.7 MPa 0.14-0.7 MPa
Standard Stroke 10-85mm (10-30°) 10-85mm (10-30°)
Sensitivity ≤0.1%F.S. ≤0.2%F.S.
Linearity ±0.1%F.S. ±1%F.S.
Output Flow 80L/min (ANR) 80L/min (ANR)
Key Features
  • HART protocol for remote parameter adjustment
  • Internal push-button calibration
  • ATEX-certified explosion-proof options
  • LCD screen for deviation/input value display
  • 60% reduced air consumption compared to traditional models
Applications
  • Pharmaceutical sterile processes
  • Food & beverage packaging lines
  • Water treatment systems
