Fisher 67DFR Pressure Regulator Flowserve Logix 520MD Industrial Control Valves Digital Valve Positioner China Diaphragm Valve

1
MOQ
US $1500.00 - 2100.00/ Unit
harga
Fisher 67DFR Pressure Regulator Flowserve Logix 520MD Industrial Control Valves Digital Valve Positioner China Diaphragm Valve
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Berat: 3,5 kg
Pasokan Tegangan (maksimum): 30 VDC
Arus Pengoperasian Minimum yang Diperlukan: 3,6 mA
Pengulangan: <0,25%
Rentang sinyal masukan: 4 - 20 ma hart
Jangkauan tekanan masuk: 10,5 sampai 6,0 bar
Menyoroti:

Fisher 67DFR pressure regulator

,

Flowserve Logix 520MD positioner

,

industrial diaphragm control valve
Informasi dasar
Nama merek: Flowserve
Nomor model: 520MD
Dokumen: Company profile Xiangjing (...ts.pdf
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kotak kardus + perlindungan
Waktu pengiriman: 45 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 1000 unit per tahun
Deskripsi Produk

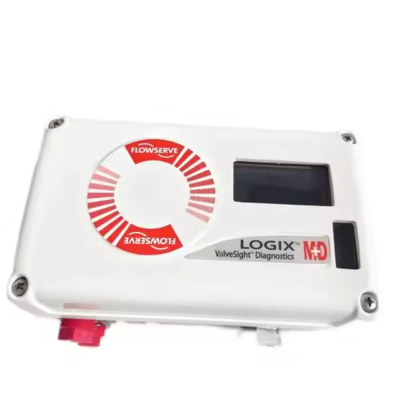

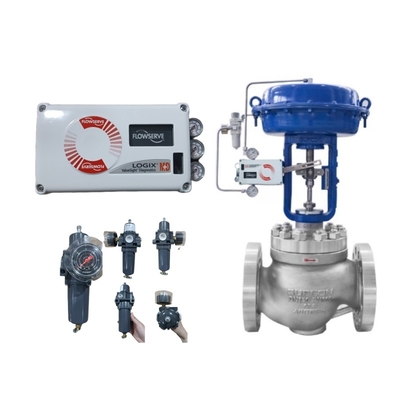

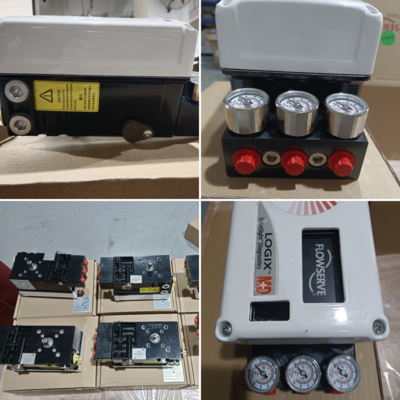

Flowserve 520MD Digital Valve Positioner with Fisher 67DFR Regulator

Product Overview

The Flowserve Logix 520MD digital valve positioner integrated with Fisher 67DFR pressure regulator provides a turnkey solution for industrial valve control. This system combines HART 7 communication with high-precision pneumatic actuation, offering advanced diagnostics and seamless integration with plant control systems.

Technical Parameters

Parameter Specification
Model 520MD
Input Signal 4-20mA, HART 7
Output Signal Pneumatic (0.2-1.0 bar)
Accuracy ±0.1% FS
Communication HART 7, Foundation Fieldbus
Pressure Regulator Fisher 67DFR (0-10 bar range)
Power Supply 24V DC
Protection IP66/NEMA 4X
Operating Temp -40°C to +85°C

Features

Digital Intelligence: HART 7/Fieldbus communication for asset management

Precision Control: ±0.1% accuracy for critical process applications

Modular Design: Easy integration with Fisher 67DFR regulator

Rugged Construction: IP66-rated enclosure for harsh environments

Global Compliance: CE, SIL 3 certification

Applications

Oil & Gas: Wellhead control valves and pipeline pressure regulation

Power Generation: Turbine bypass valve systems

Chemical Processing: Reactor feed pressure control

Water Treatment: Desalination plant diaphragm valve control
