Flowserve Logix 3800 Digital Valve Positioner | Advanced Valve Automation Supplier China

999 set
MOQ
Bisa dinegosiasikan
harga
Flowserve Logix 3800 Digital Valve Positioner | Advanced Valve Automation Supplier China
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
suhu media: Suhu normal
Matrial: Paduan/Baja
Kepekaan: ± 0,2% FS
Catu daya: Two-Wire, 4-20 Ma 10.0 hingga 30.0 VDC
Bahan tubuh: Baja tahan karat, baja karbon, besi cor
Kelas atex: EX II 2G/D C IIC TX
Diagnosa: TIDAK
Tingkat perlindungan: IP 66/NEMA 4X
Komunikasi: Protokol Hart
Jenis Cincin Kursi: Kerucut, disegel dengan cincin-O
Ledakan transien cepat: Tidak ada efek pada 2 kV
Standar atau tidak standar: Standar
Aplikasi: Kontrol proses, HVAC, pengolahan air
Tetapkan titik: 4 hingga 20 ma
Ketepatan: ± 0,5%
Informasi dasar
Nama merek: Flowserve
Nomor model: Posisi Digital - Logix 3800
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Tipe Pengepakan: Kotak Karton/Kotak Kayu Non-Fumigasi
Menyediakan kemampuan: 999 set/set per tahun
Deskripsi Produk

Product Overview

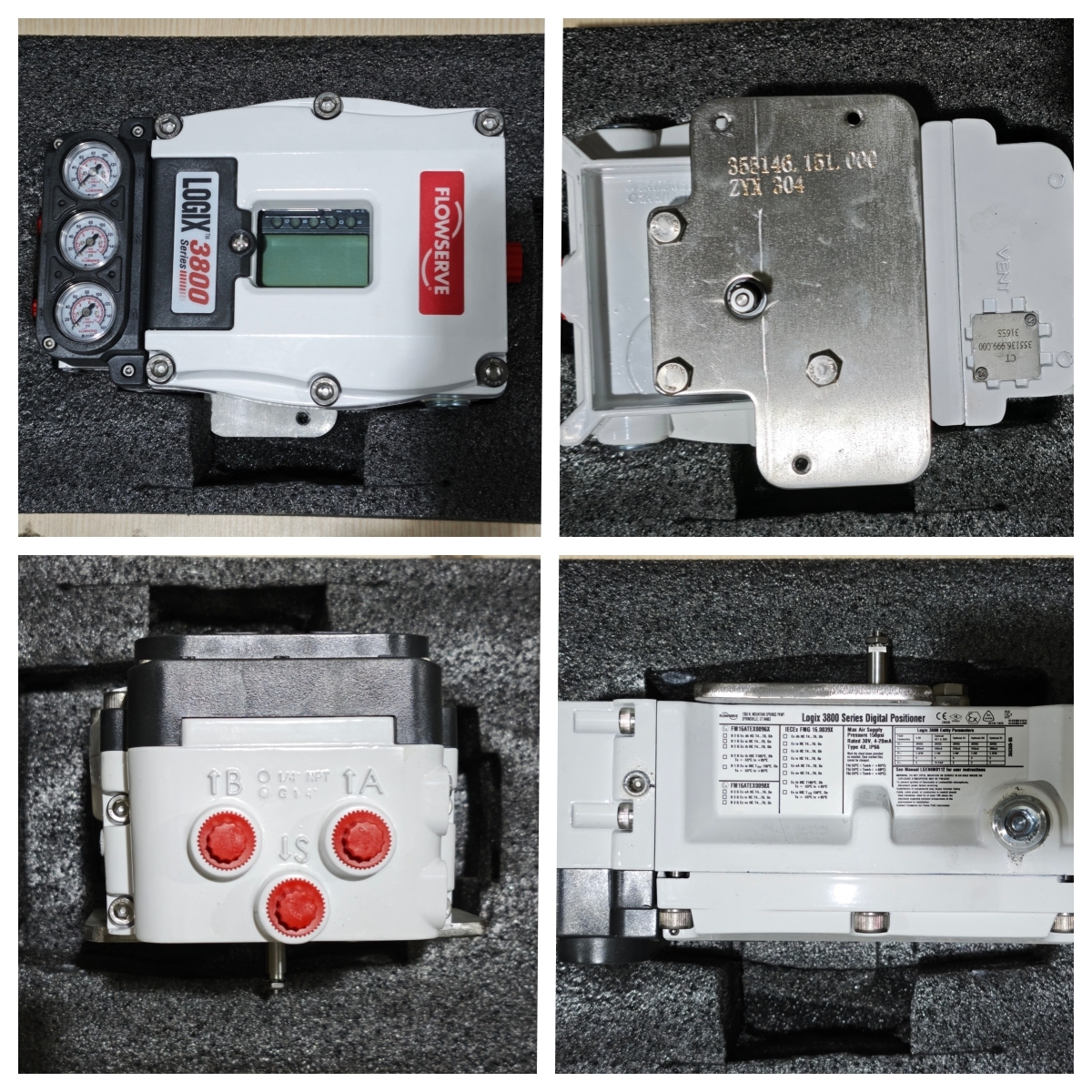

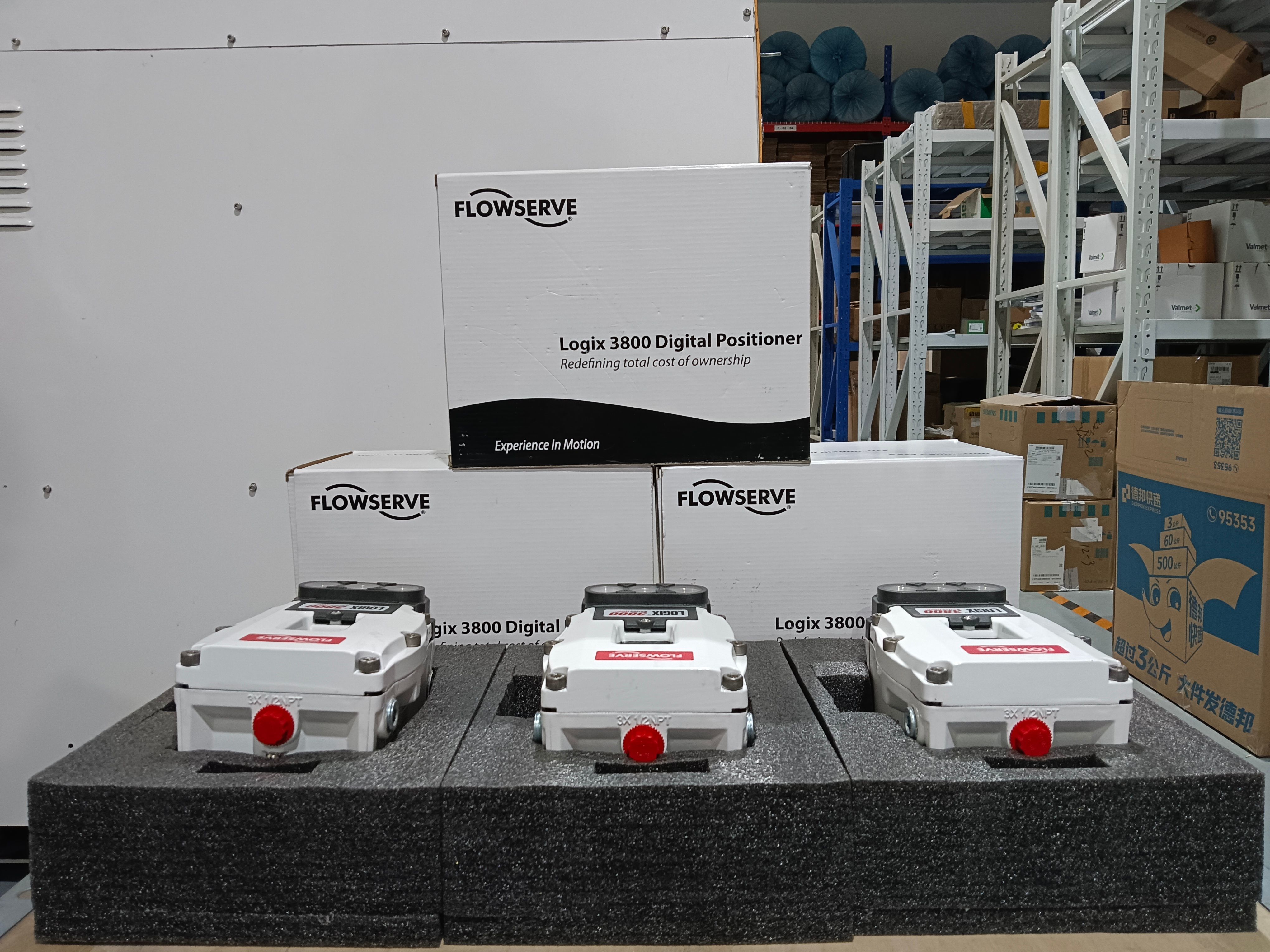

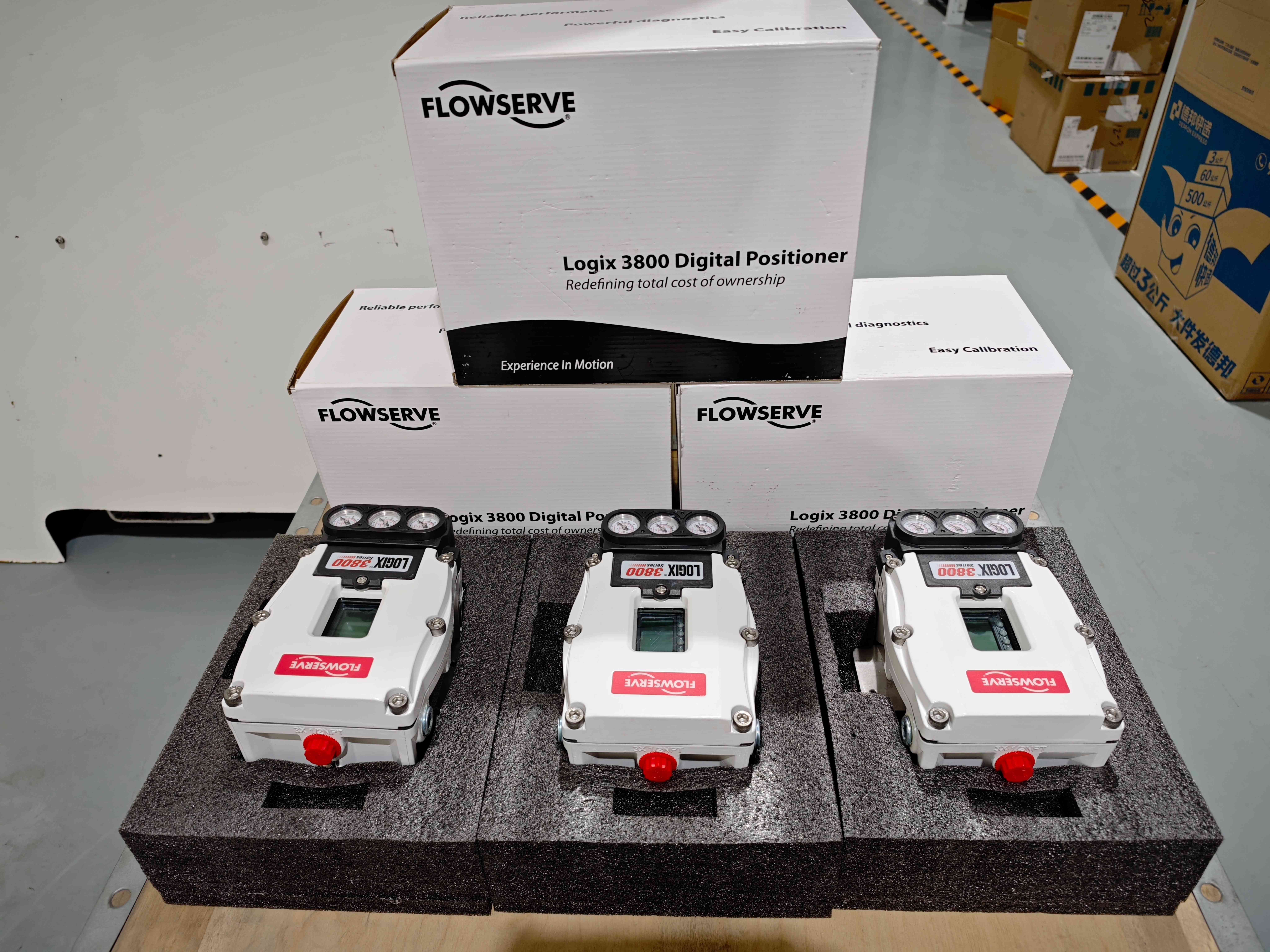

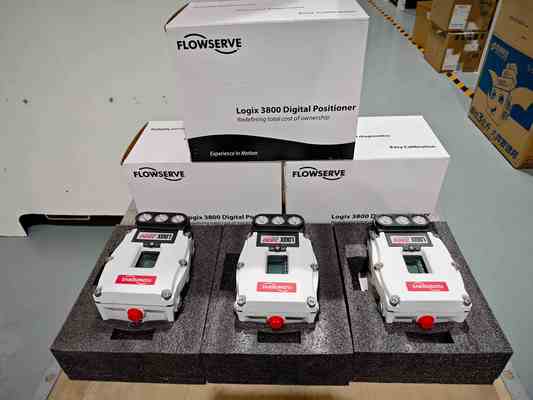

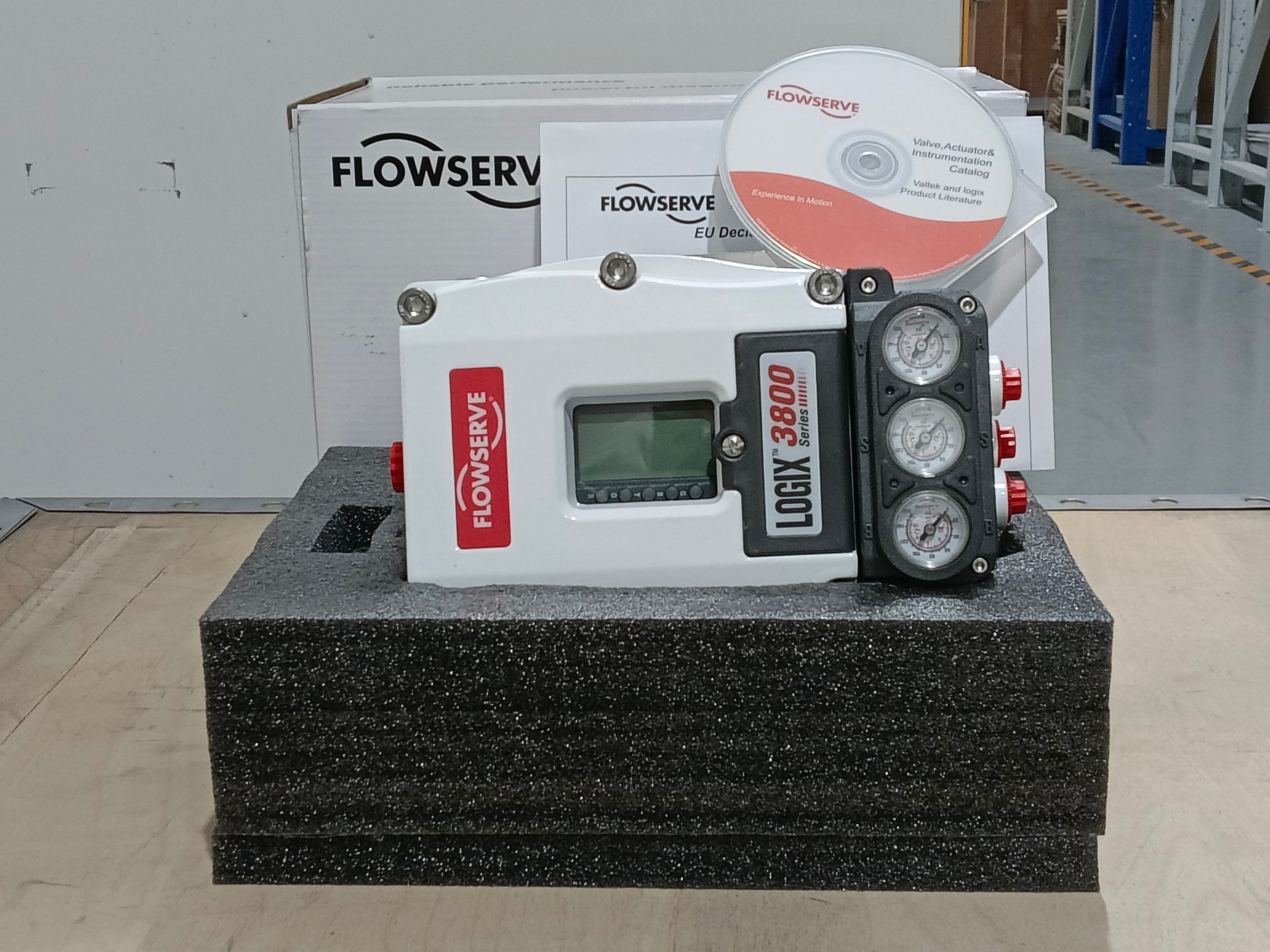

The Flowserve Logix 3800 Digital Valve Positioner is designed for the next generation of valve automation. Built on proven Logix technology, it combines advanced digital communication, superior diagnostics, and user-friendly configuration. The Logix 3800 provides precise valve control for both rotary and linear actuators, ensuring reliable operation in demanding process environments.


Features

  • HART 7 communication protocol for smart plant integration
  • Predictive diagnostics to reduce downtime and maintenance costs
  • Auto-calibration for fast and easy setup
  • Local LCD display with intuitive interface
  • Modular design for simplified maintenance
  • High accuracy and repeatability in positioning control
  • Rugged enclosure for harsh industrial environments

Technical Specifications

  • Input Signal: 4–20 mA DC with HART 7 communication
  • Supply Pressure: Up to 6 bar (90 psi)
  • Enclosure Rating: IP66, NEMA 4X
  • Temperature Range: -40°C to +85°C
  • Communication: HART 7
  • Mounting: Suitable for both rotary and linear actuators
  • Display: Multi-language LCD with diagnostic icons
  • Self-Diagnostics: Continuous monitoring of actuator and valve performance

Applications

  • Oil and Gas production and refining
  • Chemical and petrochemical industries
  • Power generation facilities
  • Pulp and paper manufacturing
  • Water and wastewater treatment
  • Industrial automation requiring smart valve solutions

Benefits

  • Optimized process control with high accuracy
  • Reduced total cost of ownership through predictive maintenance
  • Easy integration with modern distributed control systems
  • Reliable in extreme and hazardous environments
  • Extends valve and actuator life cycle

FAQ

Q1: What is the difference between Logix 3800 and Logix 3200?
A1: The Logix 3800 offers enhanced diagnostics, HART 7 communication, and improved modular design compared to the Logix 3200.

Q2: Is the Logix 3800 suitable for critical process industries?
A2: Yes, it is widely used in oil and gas, chemical, and power industries.

Q3: Can the Logix 3800 be configured locally?
A3: Yes, it features a local LCD display with intuitive navigation.

Q4: Does it support predictive maintenance?
A4: Yes, advanced diagnostics allow predictive maintenance to reduce downtime.
