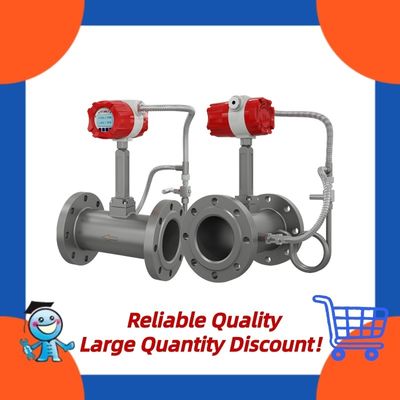

Supmea LUGB-SUP Vortex Flowmeter
Product Overview
The Supmea LUGB-SUP Vortex Flowmeter is a robust and accurate device designed for measuring the flow rate of steam, gases, and low-viscosity liquids in industrial pipelines. Based on the Karman vortex principle, it generates vortices behind a bluff body, detecting flow velocity through pressure fluctuations captured by a piezoelectric crystal. Available in standard, temperature/pressure compensated, and anti-vibration models, the LUGB-SUP ensures reliable performance with no moving parts, minimal maintenance, and high durability. With options for pulse, 4-20 mA, and RS485 outputs, it integrates seamlessly into control systems, making it a cost-effective choice for petroleum, chemical, metallurgy, and environmental protection industries.
Key Features
- Karman Vortex Principle: Measures flow by vortex shedding frequency, ideal for steam and gases.
- No Moving Parts: Reduces wear and maintenance for long-term reliability.
- Temperature/Pressure Compensation: Optional models ensure accurate readings under varying conditions.
- Anti-Vibration Design: Intelligent filtering for stable measurements in vibrating pipelines.
- Wide Medium Compatibility: Handles steam, compressed air, nitrogen, and low-viscosity liquids.
- Multiple Outputs: Pulse, 4-20 mA analog, RS485 (Modbus RTU) for easy integration.
- High Accuracy: ±1% of reading with low pressure loss.
- Durable Construction: IP65/IP68 protection, suitable for harsh environments.
- IoT and GPRS Options: Enables remote monitoring and data logging.
- Easy Installation: Flange or clamp-on designs with minimal straight pipe requirements.
Technical Specifications
| Parameter |
Specification |
| Measuring Principle |
Karman Vortex Street |
| Flow Velocity Range |
0.5–12 m/s (gas/steam); 0.3–7 m/s (liquid) |
| Accuracy |
±1.0% of reading (standard); ±0.5% optional |
| Repeatability |
±0.33% of reading |
| Nominal Diameter |
DN25–DN300 (1" to 12") |
| Pressure Rating |
ANSI Class 150–600 (PN10–PN100) |
| Temperature Range |
-40°C to +350°C (-40°F to +662°F) for gas/steam |
| Medium Temperature |
-40°C to +160°C (-40°F to +320°F) for liquid |
| Body Material |
Carbon steel, stainless steel (304/316) |
| Output Signals |
Pulse, 4–20 mA, RS485 (Modbus RTU), GPRS (optional) |
| Power Supply |
12–24 VDC, 85–265 VAC |
| Protection Rating |
IP65 (standard), IP67/IP68 optional |
| Certifications |
CE, RoHS, Exd IIC T6 (optional) |
Applications
The Supmea LUGB-SUP Vortex Flowmeter is tailored for accurate flow measurement in industrial processes:
- Petroleum and Chemical: Measures steam and gas flow in refining and production.
- Metallurgy: Monitors compressed air and nitrogen in manufacturing lines.
- Electric Power: Tracks steam flow in boilers and turbines.
- Environmental Protection: Measures wastewater and emission gases.
- Food Industry: Controls liquid flow in hygienic processing.
Frequently Asked Questions
What principle does the LUGB-SUP use for measurement?
It employs the Karman vortex street principle, detecting vortex frequency for flow calculation.
Is the flowmeter suitable for steam?
Yes, it specializes in steam measurement with optional temperature/pressure compensation.
What is the minimum pipe size?
DN25 (1"), with options up to DN300 for larger flows.
Does it require straight pipe runs?
Minimal requirements: 15D upstream, 5D downstream for standard installations.
Can it measure low-viscosity liquids?
Yes, it excels in low-viscosity liquids, gases, and steam with ≥5 μS/cm conductivity.
