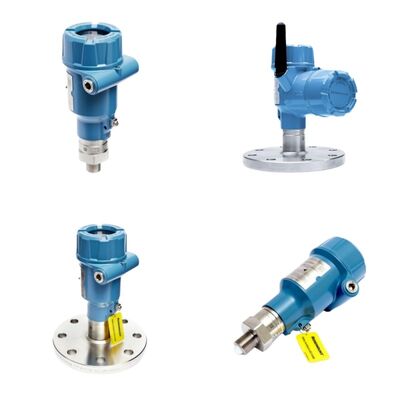

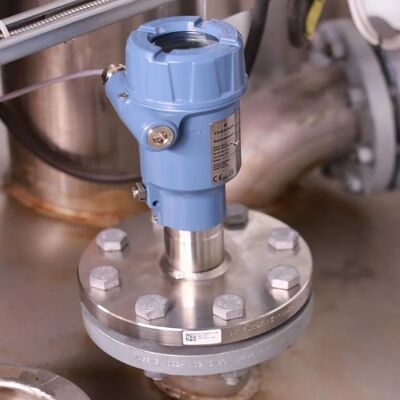

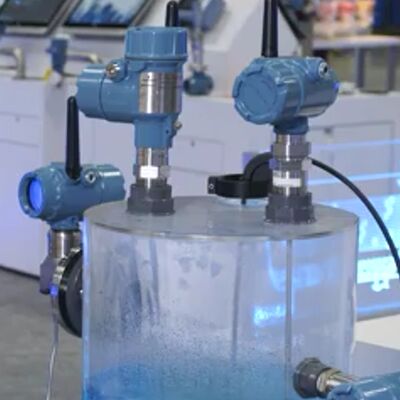

Rosemount 3408 Radar Level Transmitter 80GHz Non Contact Liquid Level Measurement Industrial Smart Sensor

1
MOQ
US $800.00 - 850.00/ Unit
harga
Rosemount 3408 Radar Level Transmitter 80GHz Non Contact Liquid Level Measurement Industrial Smart Sensor
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Ketepatan: ± 2 mm
Catu daya: 12-35 VDC (30 VDC dalam instalasi yang Aman Secara Intrinsik)
Frekuensi pengukuran: 80GHz
Jenis Antena: Segel Proses, Antena Lensa, Antena Lensa ATAP
Suhu Operasional: -76 hingga 392 °F (-60 hingga 200 °C)
Protokol Komunikasi: 4-20mA HART7,NirkabelHAR
Tingkat Pembaruan Nirkabel: 4 detik. hingga 60 menit, dapat dipilih pengguna
Informasi dasar
Tempat asal: Amerika Serikat
Nama merek: Rosemount
Nomor model: 3408
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kotak karton/peti kayu
Waktu pengiriman: 6~8 minggu
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 1000 unit per tahun
Deskripsi Produk
Product Overview

The Rosemount 3408 is a compact 80 GHz FMCW radar level transmitter designed for continuous level measurement in tanks and vessels. It offers high accuracy even in small nozzles and challenging conditions like foam, condensation, or agitation. The Bluetooth interface makes setup and troubleshooting fast and safe without opening the cover.

Features
  • 80 GHz narrow beam – ideal for small nozzles and internal obstructions
  • Smart Echo Supervision – ignores false echoes from foam or condensation
  • Bluetooth wireless access – configure and monitor from phone/tablet
  • Remote proof-test capability – verify safety loops from control room
  • All-PTFE wetted parts option – handles corrosive liquids
  • Heartbeat Technology – quick verification without removal
Technical Specifications
Measuring Principle: FMCW 80 GHz radar
Accuracy: ±2 mm (standard)
Measuring Range: Up to 20 m (65 ft)
Process Temperature: -40 °C to +150 °C (-40 °F to +302 °F)
Process Pressure: -1 to +20 bar (-14.5 to +290 psig)
Antenna Types: Lens or cone
Output: 4–20 mA HART
Protection Class: IP66/67, NEMA 4X
Approvals: ATEX, IECEx, FM, CSA, SIL 2 capable
Applications
  • Small process tanks and vessels
  • Corrosive liquid storage
  • Foaming or condensing applications
  • Overfill prevention and inventory
FAQ
Q: Can I configure it without opening the cover? A: Yes – full Bluetooth access from a phone or tablet.
Q: How accurate in foam? A: Smart Echo Supervision filters false echoes effectively.
Contact Us

Email:edwardzhao@gbsxj.com

Phone/WeChat/WhatsApp:+8615000725058

Related Products
  • Rosemount 5408 – higher accuracy 26 GHz radar
  • Rosemount 5300 – guided wave radar
  • Rosemount 3051 pressure transmitters
