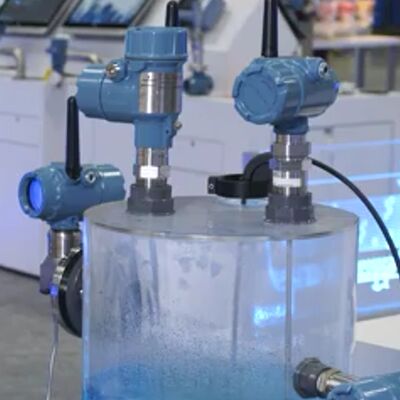

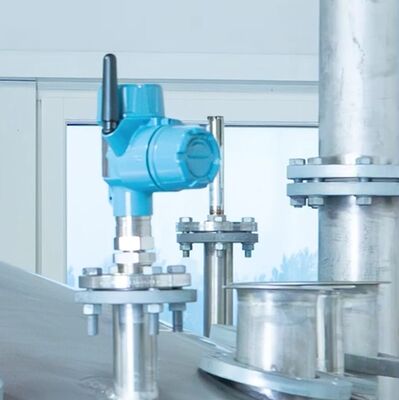

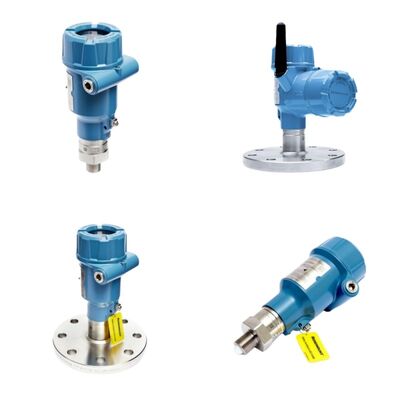

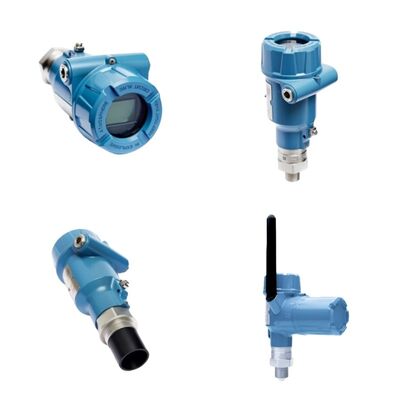

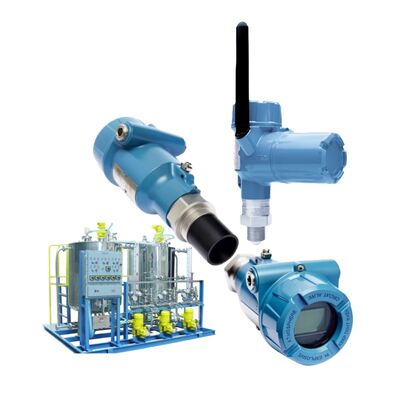

High Accuracy 80GHz Liquid Level Sensor Emerson Rosemount 3408 Wireless Smart Radar Level Transmitter

1
MOQ
US $800.00 - 849.00/ Unit
harga
High Accuracy 80GHz Liquid Level Sensor Emerson Rosemount 3408 Wireless Smart Radar Level Transmitter
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Ketepatan: ± 2 mm
Catu daya: 12-35 VDC (30 VDC dalam instalasi yang Aman Secara Intrinsik)
Frekuensi pengukuran: 80GHz
Jenis Antena: Segel Proses, Antena Lensa, Antena Lensa ATAP
Suhu Operasional: -76 hingga 392 °F (-60 hingga 200 °C)
Protokol Komunikasi: 4-20mA HART7,NirkabelHAR
Tingkat Pembaruan Nirkabel: 4 detik. hingga 60 menit, dapat dipilih pengguna
Informasi dasar
Tempat asal: Amerika Serikat
Nama merek: Rosemount
Nomor model: 3408
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kotak karton/peti kayu
Waktu pengiriman: 6~8 minggu
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 800 unit per tahun
Deskripsi Produk
Rosemount 3408 Level Transmitter
Product Overview

Product Overview The Rosemount 3408 is an 80 GHz non-contacting radar level transmitter built for reliable measurement in tanks with small process connections. The Bluetooth interface allows configuration, diagnostics, and proof-testing from a safe distance using a phone or tablet. It is widely used in chemical, water, and oil applications where quick access and high accuracy matter.

Features
  • Very narrow 80 GHz beam – fits small nozzles
  • Bluetooth connectivity – safe setup without cover removal
  • Remote proof-testing from control room
  • Smart Echo Supervision – reliable in foam/condensation
  • PTFE lens antenna option for corrosive service
  • Heartbeat verification – fast proof-test reporting
Technical Specifications
Measuring Principle:
FMCW 80 GHz radar
Accuracy:
±2 mm
Measuring Range:
Up to 20 m (65 ft)
Process Temperature:
-40 °C to +150 °C
Process Pressure:
-1 to +20 bar
Antenna:
Lens or cone
Output:
4–20 mA HART
Protection:
IP66/67, NEMA 4X
Approvals:
ATEX, IECEx, FM, CSA, SIL 2
Applications
  • Chemical storage tanks
  • Water and wastewater vessels
  • Small nozzle installations
  • Corrosive or condensing liquids
FAQ
Q: Bluetooth secure?
A: Yes – password protected and encrypted.
Q: Suitable for small tanks?
A: Yes – narrow beam works in small nozzles.
