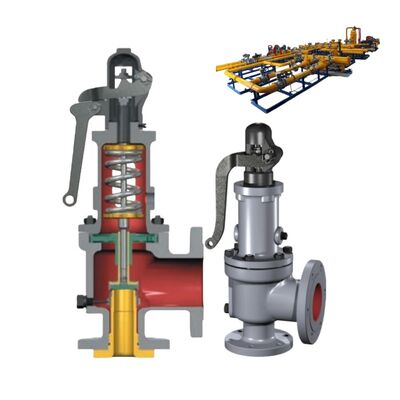

High Capacity Consolidated Type 1900/P Type ASME Certified Spring Loaded Safety Relief Valve for Boiler & Pressure Vessel

1
MOQ
US $1550.00 - 2200.00/ Set
harga
High Capacity Consolidated Type 1900/P Type ASME Certified Spring Loaded Safety Relief Valve for Boiler & Pressure Vessel
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Jenis koneksi: Flens
Ukuran Pelabuhan: 2 1/2 inci, 3 inci, 4 inci, 6 inci, 2 inci, 8 inci, 10 inci
Max. tekanan operasi: 6000 psig
Ukuran Lubang: D sampai T
Kisaran Suhu: -20 ° F hingga 850 ° F.
Atur Rentang Tekanan: 5 psig hingga 6000 psig
Peringkat Masuk: ASME Kelas 150 hingga 2500
Media: Cairan Gas Uap
Informasi dasar
Tempat asal: Amerika Serikat
Nama merek: Consolidated
Nomor model: 1900/P
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kotak karton/peti kayu
Waktu pengiriman: 6~8 minggu
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 500 set per tahun
Deskripsi Produk
Consolidated 1900/P Series Safety Relief Valve
Product Overview

The Consolidated 1900/P is a balanced bellows safety relief valve in the 1900 series, built for applications where backpressure varies or containment of emissions is required. It provides full-lift, pop-action relief with tight seating and is ASME-certified for steam, gas, and liquid overpressure protection in critical process systems.

Features
  • Balanced bellows – eliminates backpressure effect on set pressure
  • Full nozzle and disc design for high flow capacity
  • Adjustable blowdown ring
  • Multiple bonnet styles (open/closed)
  • Corrosion-resistant trim options
  • High-temperature and high-pressure capability
  • Certified for multiple media types
Technical Specifications
  • Orifice Designation: D to T (API 526)
  • Inlet/Outlet Sizes: ½" D 2" to 8" T 10" typical
  • Set Pressure: 15 to 6000 psig
  • Temperature Range: –423 °F to +1000 °F
  • Body Materials: Carbon steel, stainless steel, alloy steel
  • Disc/Seat: Stainless steel, Stellite facing
  • Leakage: API 527 tight seating
  • Certification: ASME Section VIII, API 526/527
Applications
  • Boiler and superheater overpressure protection
  • Pressure vessel safety relief
  • High backpressure systems
  • Refinery process safety
  • Gas and vapor relief
FAQ
Q: Why balanced bellows?
A: To maintain accurate set pressure when discharge piping has backpressure.
Q: High-temperature rating?
A: Up to +1000 °F with suitable materials.
Contact Us

Email: edwardzhao@gbsxj.com

Phone/WeChat/WhatsApp: +8615000725058

Related Products
  • Consolidated 1900 conventional series
  • Consolidated 2900 / 3900 balanced bellows
  • Consolidated pilot-operated relief valves
