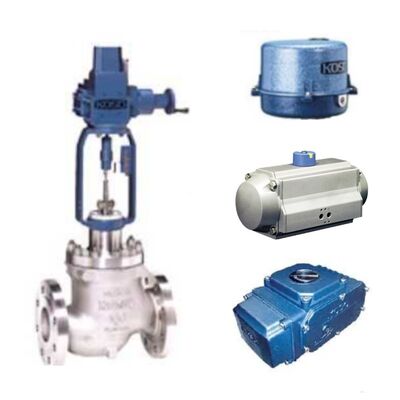

KOSO 3800 Series Microprocessor Controlled Actuators in Oil Gas Petrochemical Power Plants

1
MOQ
USD 5300-6000 per set
harga
KOSO 3800 Series Microprocessor Controlled Actuators in Oil Gas Petrochemical Power Plants
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Tipe Gerak Aktuator: Batang Linier, Batang Putar, Lengan Engkol
Gaya/Torsi Output Maks: 533787 N, 11300 Nm, 138000 Nm
Tegangan Pasokan: AC100V, AC220V, AC440V, DC48V, AC120V
Pukulan/Sudut Maks: 550mm, 90°, 90°
Sinyal kontrol: 4-20mA DC, Digital langsung, Pulsa, Dua posisi
suhu lingkungan: -30°C hingga +70°C (Pilihan: +85°C)
Band mati: 0,05% (minimum), dapat dipilih di PCP antara 0,05% dan 5,0%
Akurasi Posisi: <0,15% dari pukulan penuh
Linearitas: <0,05% dari pukulan penuh
Pengulangan: <0,1% dari pukulan penuh
Menyoroti:

KOSO 3800 Series microprocessor actuators

,

oil gas petrochemical actuators

,

power plant valve accessories
Informasi dasar
Tempat asal: Jepang
Nama merek: KOSO
Nomor model: 3800
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: kemasan karton/kotak kayu
Waktu pengiriman: 6-8 minggu
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 800 set per tahun
Deskripsi Produk

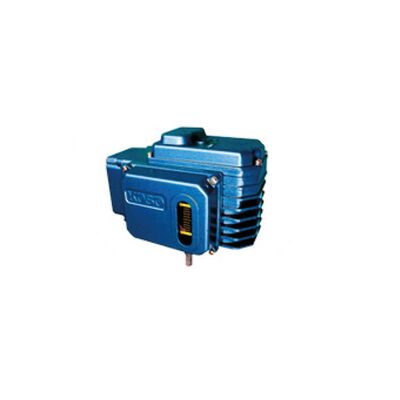

KOSO 3800 Series Microprocessor Controlled Actuators

Product Overview

KOSO 3800 Series are high-performance intelligent electric actuators driven by advanced microprocessor control. They deliver high precision, stability and fast response for linear and rotary control valves, widely used in power, oil & gas, refinery, petrochemical and heavy industrial process automation.

Features

  • Microprocessor control for ultra-high positioning accuracy
  • Excellent repeatability and low deadband
  • Stable and reliable long-term operation
  • Wide input voltage range for global use
  • Multiple control signals supported
  • Robust enclosure for harsh environments
  • Compact structure and easy installation
  • Optional explosion-proof design
  • Manual override for emergency operation
  • Suitable for linear and rotary valves

Technical Specifications

Series 3800 Series
Type Microprocessor Controlled Actuators
Motion Linear, Rotary, Crank Arm
Control Signal 4-20mA DC, digital signal
Supply Voltage AC100V, AC220V, AC440V, DC48V
Ambient Temperature -30°C to +70°C
Protection Grade IP65, IP67 optional
Enclosure NEMA 4X, explosion-proof optional
Positioning Accuracy <0.15% of full stroke

Applications

  • Thermal power plants and boiler systems
  • Oil and gas production and transportation
  • Petroleum refineries
  • Petrochemical and chemical industry
  • Metallurgical and steel industry
  • Water treatment and utility systems
  • Paper making industry
  • Industrial process automation

FAQ

Q: What is the control mode of 3800 series?

A: It uses advanced microprocessor digital control.

Q: What control signal does it support?

A: It supports 4-20mA DC and various digital signals.

Q: Is explosion-proof type available?

A: Yes, explosion-proof versions are available for hazardous areas.

Q: What is the positioning accuracy?

A: High accuracy less than 0.15% of full stroke.

Q: Can it be used for linear and rotary valves?

A: Yes, it fits both linear and rotary control valves.
