KOSO 300R Acid Proof Ball Valve KOSO 6300R Actuator for Petrochemical Acid Liquid Pipeline

1
MOQ
1450-1850 USD per set
harga
KOSO 300R Acid Proof Ball Valve KOSO 6300R Actuator for Petrochemical Acid Liquid Pipeline
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Bahan bagian yang dibasahi: Lapisan PTFE dan FEP
Bahan Tubuh: FEP/WCB, CF8, CF8M
Bahan Bola: FEP/SUS316
Bahan cincin segel: PTFE
Ketahanan Asam: Ketahanan korosi dan asam yang sangat baik
Tipe tubuh: Desain lubang penuh atau lubang berkurang
Ukuran Nominal: 1/2" (15A) hingga 10" (250A)
Peringkat Tekanan: ANSI Kelas 150, JIS 10K
Suhu cairan: -10°C sampai +100°C
Jenis koneksi: Bergelang (standar ANSI/JIS)
Menyoroti:

KOSO 300R acid proof ball valve

,

KOSO 6300R actuator for petrochemical

,

pneumatic control valve for acid liquid
Informasi dasar
Tempat asal: Jepang
Nama merek: KOSO
Nomor model: 300R
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: kemasan karton/kotak kayu
Waktu pengiriman: 6-8 minggu
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 800 set per tahun
Deskripsi Produk

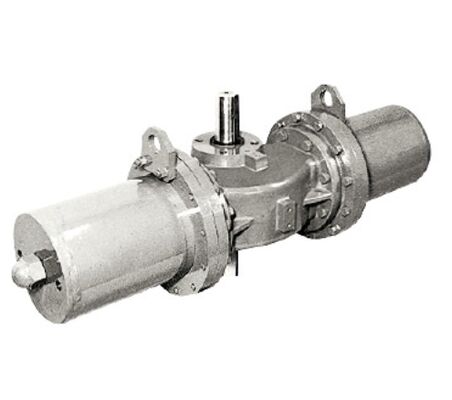

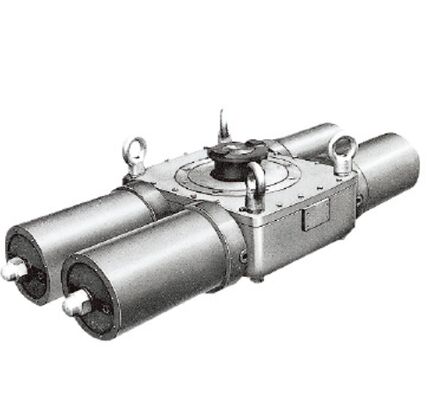

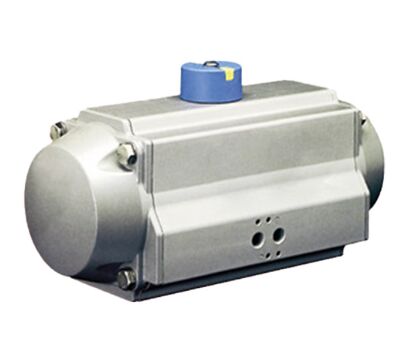

KOSO 300R Acid Proof Ball Valve with KOSO 6300R Actuator

Product Overview

The KOSO 300R Acid Proof Ball Valve equipped with KOSO 6300R pneumatic actuator is a professional control solution designed for highly corrosive acid liquid environments. It features outstanding acid resistance, stable sealing performance, and reliable pneumatic actuation, widely used in petrochemical pipelines to achieve safe and precise on-off or regulation of corrosive media.

Features

  • Excellent acid and corrosion resistance for strong acid medium
  • PTFE/FEP lined structure ensures long service life
  • Tight shut-off with zero leakage in harsh working conditions
  • Full bore design reduces flow resistance and pressure loss
  • KOSO 6300R actuator provides stable and fast actuation
  • Suitable for long-term operation in petrochemical systems
  • Compact structure for easy installation and maintenance
  • Wide pressure and temperature range for versatile application
  • High strength body material against erosion and corrosion
  • Compatible with various pipeline standards and systems

Technical Specifications

Parameter Value
BrandKOSO
Valve Model300R
Actuator Model6300R
StructureAcid proof floating ball valve
Lining MaterialPTFE/FEP
Pressure ClassANSI Class 150, JIS 10K
Temperature Range-10℃ to 100℃
Nominal Size1/2" to 10" (DN15 to DN250)
Connection TypeFlanged end
Actuation TypePneumatic
ApplicationCorrosive acid liquid control

Applications

  • Petrochemical acid liquid pipelines
  • Chemical engineering corrosive medium systems
  • Acid waste water treatment projects
  • Pharmaceutical and pesticide production lines
  • Metallurgical acid processing equipment
  • Industrial chemical fluid transmission systems
  • Acid storage and transportation pipeline control

FAQ

Q1: What kind of acid media can this valve resist?

It can resist various strong acids such as sulfuric acid, hydrochloric acid, nitric acid and other corrosive chemical liquids.

Q2: Is the KOSO 6300R actuator pneumatic or electric?

KOSO 6300R is a pneumatic actuator, suitable for stable and safe industrial field control.

Q3: What is the leakage level of the valve seat?

It achieves zero leakage with soft seal design, meeting strict industrial sealing standards.

Q4: Can this valve be used in high temperature environments?

The recommended operating temperature is -10℃ to 100℃, suitable for conventional acid processing conditions.

Q5: Are customization services available for size and flange standard?

Yes, we support customized sizes, flange standards and connection types according to project requirements.

Contact Us

For quotation, technical support and bulk orders, please contact:
wechat/what's app/phone number: +86 13472860702

Related Products

  • KOSO 500R Series Corrosion Resistant Ball Valves
  • KOSO 6300R Series Pneumatic Actuators
  • KOSO Control Valves for Petrochemical Industry
  • Acid Proof Flanged Ball Valves with Electric Actuator
  • PTFE Lined Valves for Chemical Process Systems
