Name: Rotork YT-3303 Smart Valve Positioner Digital Control Valve Positioner for Industrial Valves
Brand: Xiangjing (Shanghai) M&E Technology Co., Ltd
SKU: YT-3303
Price: 800 USD
Availability: InStock

fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu

fitur

Spesifikasi

Jenis gerak: Linier/Rotari

Tipe akting: Tunggal / ganda

Tekanan pasokan: 0,14 hingga 0,7 MPa (1,4 hingga 7 bar)

Entri Saluran: G 1/2 atau 1/2 NPT atau M20x1.5P

Koneksi Udara: Rc 1/4 atau 1/4 NPT atau G 1/4

Sambungan pengukur: 1/8 NPT

Perlindungan Masuknya: IP66, Tipe 4X(FM) (tidak termasuk pengukur tekanan)

Suhu Pengoperasian (Tipe Standar): -30 hingga 85 °C (-22 hingga 185 °F)

Informasi dasar

Tempat asal: Cina

Nama merek: Rotork

Nomor model: YT-3303

Dokumen: PUB126-001-00_1225 Rotork V...rs.pdf

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Karton + Peti Kayu + Kemasan Pelindung

Waktu pengiriman: 60 hari

Syarat-syarat pembayaran: T/T

Menyediakan kemampuan: 600 unit per tahun

Galeri

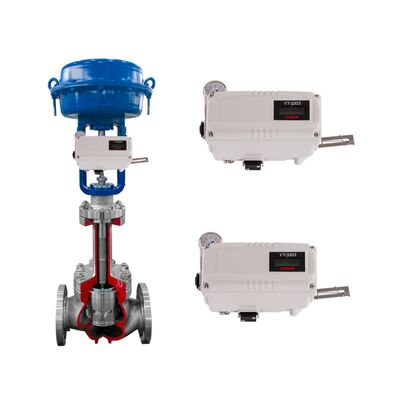

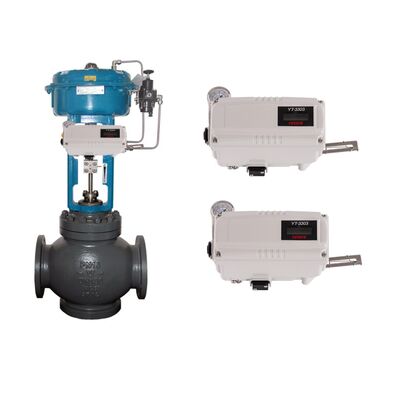

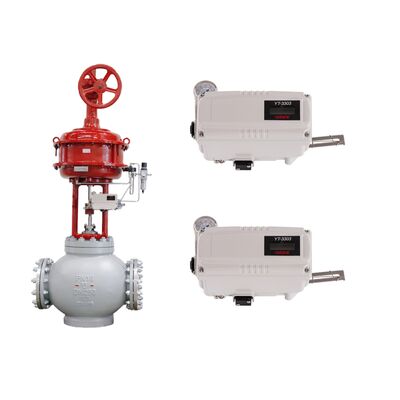

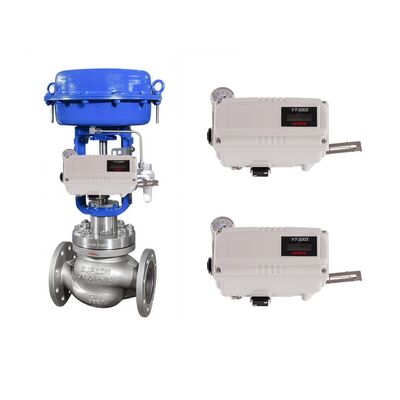

Rotork YT-3303 Smart Valve Positioner Digital Control Valve Positioner for Industrial Valves

Deskripsi Produk

Product Overview

The Rotork YT-3303 Smart Positioner (Potentiometer Type) is a robust, microprocessor-based valve positioner engineered to deliver precise control of valve stroke using a standard 4-20 mA input signal. Designed as part of the YT-3300 series with new software, it combines proven potentiometer feedback technology with advanced auto-calibration and PID control for consistent, repeatable performance in demanding industrial environments.

Key Features

Large LCD display with intuitive 4-button interface for easy status monitoring and configuration
Ultra-fast 0.5-second boot time minimizes valve travel during power interruptions
Stable operation under fluctuating supply pressure or high vibration conditions
Extremely low air consumption (below 2 LPM at idle) for reduced operating costs
Field-installable orifices to eliminate hunting and optimize performance
Modular construction for simplified maintenance
IP66 / Type 4X (FM) enclosure with corrosion-resistant polyester powder coating
SIL2 certified for safety-critical applications

Technical Specifications

Parameter	Specification
Housing Material	Aluminum
Motion Type	Linear (left yoke) or Rotary
Acting Type	Single / Double
Input Signal	4-20 mA DC
Minimum Current Signal	3.2 mA (standard)
Supply Pressure	0.14–0.7 MPa (1.4–7 bar)
Stroke	Linear: 10–150 mm; Rotary: 55–110°
Impedance	Max. 500 Ω @ 20 mA DC
Linearity / Hysteresis	±0.5 % F.S.
Sensitivity / Repeatability	±0.2 % / ±0.3 % F.S.
Flow Capacity	70 LPM (Sup. = 0.14 MPa)
Air Consumption	Below 2 LPM (Sup. = 0.14 MPa @ idle)
Operating Temperature	–30 to +85 °C (standard); –40 to +85 °C (low temp)
Ingress Protection	IP66, Type 4X (FM)
Explosion Protection	ATEX, IECEx, FM, CSA, KCs, NEPSI, INMETRO, UKEX, CCC, PESO (intrinsic safety)

Applications

Ideal for linear and rotary control valves in oil & gas, chemical processing, power generation, and water treatment plants where reliable potentiometer-based feedback and hazardous-area certifications are required.

Frequently Asked Questions

Q: What makes the YT-3303 different from the YT-3300?

A: The YT-3303 uses a proven potentiometer for position feedback, while the YT-3300 employs a non-contact sensor (NCS).

Q: Can the positioner be installed in explosive atmospheres?

A: Yes — it holds comprehensive intrinsic safety certifications worldwide.

Q: Is HART communication available?

A: Yes, as an optional feature (suffix code 2).
