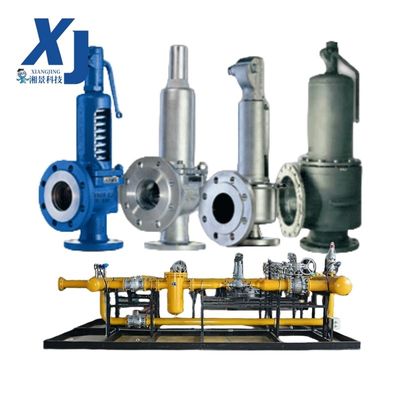

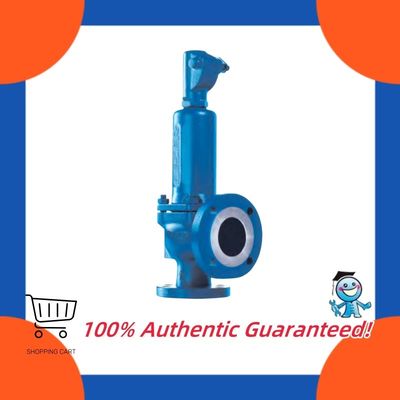

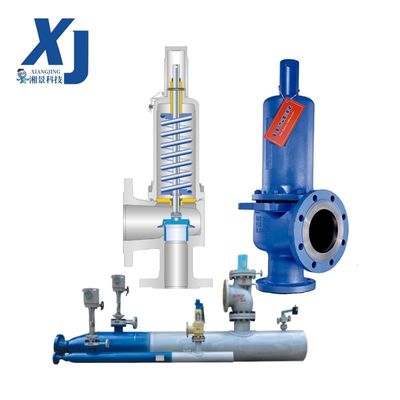

Flanged Boiler Safety Relief Valve Leser 441 442 Series Angle Valve Spring Loaded Full Lift Safety Valve

1
MOQ
US $800.00 - 1255.00/ Set
harga
Flanged Boiler Safety Relief Valve Leser 441 442 Series Angle Valve Spring Loaded Full Lift Safety Valve
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
suhu media: Suhu rendah, suhu sedang, suhu tinggi, suhu normal
Menetapkan tekanan (menurut CE): 0,1 - 40 bar | 1,5 - 580 psig
Kelas flensa: PN 10 - PN 40
Area aliran tersempit: 254 - 6.8347 mm² | 0.394 - 105.938 in²
Suhu: -270 - 450 ° C | -454 - 842 ° F
Bahan Bellow: Baja tahan karat dan elastomer
Menyoroti:

Flanged boiler safety relief valve

,

Leser 441 442 series safety valve

,

Full lift angle safety valve
Informasi dasar
Nama merek: Leser
Nomor model: 441/442
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kotak Kayu + Perlindungan
Waktu pengiriman: 70-90 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 1000 set per tahun
Deskripsi Produk
LESER Type 441/442 Safety Relief Valve Product Overview The LESER Type 441/442 Full Lift Safety Relief Valves are designed for high-capacity pressure relief in demanding industrial applications. Engineered to open rapidly within a 5% overpressure range, these spring-loaded valves ensure maximum mass flow discharge for steam, gases, and liquids. Compliant with standards like PED, ASME Section VIII, and AD 2000-Merkblatt A2, they are available in DIN and ASME flange configurati
